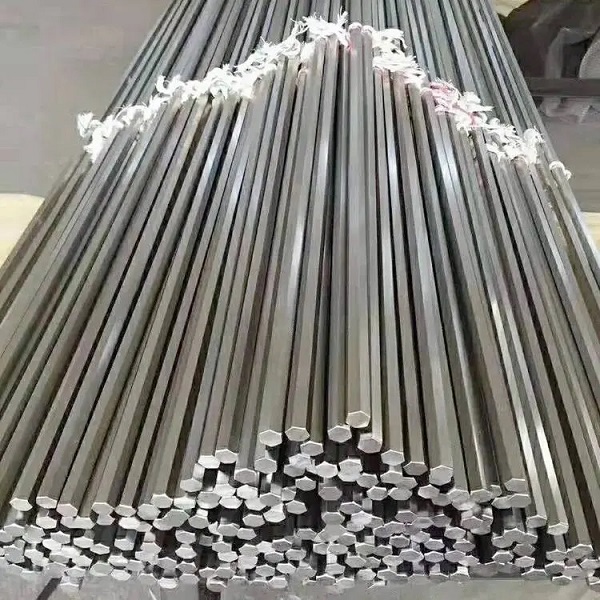

Stainless steel hexagonal bar rod

Contact Us:

+86-13220969909

+86-13220969909

john@sdafjs.com

Click to inquiry
  • Description

Introducing our premium-grade Stainless Steel Hexagonal Bar Rod, designed for both industrial applications and detailed craftsmanship. With its unique hexagonal shape, this bar rod is perfect for applications where strength, precision, and versatility are paramount.


Specifications

6mm, 8mm, 10mm, 12mm, 14mm, 16 mm, 17 mm, 18 mm, 20 mm, 22 mm, 23.5 mm, 26.5 mm, 28 mm, 30 mm, 32 mm, 36 mm, 40 mm, 45 mm, 50 mm, 56 mm, 60 mm, 63 mm, 66 mm, 70 mm, 75 mm, 80 mm, 90 mm, 100 mm, 110 mm, 118 mm, 125 mm

Stainless Steel Grades

  • AISI 201, 202
  • AISI 301, 302, 303, 304, 304L, 310, 310S, 304H, 304HS, 316, 316L, 316Ti, 317, 317L, 321, 347
  • AISI 410, 416, 420, 430, 431

Applications

Ball Valves, Needle Valves, Filter Valves, Connectors, Couplings, Plugs, Hose Ends, Manifolds, Nuts, Bolts.

TypeCold Drawn & Polished (Squares)Cold Drawn & Polished (Hexagons)
Grades304,304L,316,316L304,304L,316,316L
Diameter (Size)5mm to 40mm (1/4 ” to 1--1/2 ”)10mm to 40mm (3/8 ” to 1--1/2 ”)
Diameter Toleranceh11 (ASTM A 484)h11 (ASTM A 484)
Length3/4/6 meter (12/14ft/20feet)3/4/6 meter (12/14ft/20feet)
Length Tolerance-0/+500mm (-0 ”/+2 feet)-0/+500mm (-0 ”/+2 feet)

Looking for Stainless Steel Hex Bar suppliers? Manufacturer of Cold Drawn SS 304 Hex Bar in China according to British, American and European according to EN 10088-3, EN 10278, EN 10277 standard

SpecificationEN 10272, EN 10088-3 Grade 1.4301 (304), 1.4306 (304L), 1.4401 (316), 1.4404 (316L)
StandardAPI, ASME, SUS, UNS, ASTM, EN, GB, DIN, AISI
Sizes3mm to 800mm diameter
Length
  • 12 Random Lengths
  • Long Bars: 15-20 Random Lengths
FinishBlack, Peeled, Polished, Smooth Turned, Rough Turned, Centreless Ground, Grinding, Cold Drawn Turned, Bright Drawn, Bright, Annealed
TolerancesK11, K10, K12, H8, H10, K9, H9, H11, H13, H12
Surface Finish2B, NO.3, 1D, NO.4, 8K, 2D, BA, NO.1, HL
Production MethodRolled / Forged
Characteristics
  • Cold Working of Stainless Steel Hex Bars: Good
  • SS Hex Rod Corrosion Resistance: Excellent
  • Heat Resistance: Good
  • Heat Treatment of Hex Bars: Poor
  • Hex Rod Hot Working: Fair
  • Machinability: Good
  • Hex Bars Weldability: Very Good
Value Added Services at Suraj Metal
  • Heat Treatment
  • Surface Machining
  • Trepanning
  • Production Bar Cutting
  • Chemical Milling
  • Custom Packing
  • Turn, Ground, and Polishing
  • Rigidizing
  • Shearing
  • Precision Grinding
Other available formsIngot, Precision-Ground, Billet, Profiles, Half-Round, Hollow, Rounds, Channel, I/H, Angle, Forging, Blocks, Triangle, T-Bar, Rod, Threaded, Rectangle


Stainless Steel Hex Bar, SS Hex Bar Manufacturer, Hexagonal SS Rod, Hex Bar Material & Grades


Key Features:

  • Material Excellence: Crafted from high-quality stainless steel, ensuring prolonged durability and resistance against corrosion, rust, and tarnish.

  • Hexagonal Shape Advantage: The distinct six-sided shape offers better grip and torque, especially beneficial for fastening applications.

  • Dimensional Accuracy: Precision-engineered to maintain consistent cross-sectional dimensions, ensuring uniformity across all lengths.

  • Machinability: While boasting impressive strength, our bar rod is easily machinable and can be welded, brazed, and formed based on project requirements.

  • Broad Application Range: Ideal for manufacturing, construction, architectural designs, and even artistic projects.

  • Smooth Surface Finish: Polished to a sleek finish, enhancing the rod's aesthetic appeal and reducing the potential for material buildup.

  • Eco-Friendly: Made from recyclable stainless steel, this product aligns with sustainable manufacturing practices.


With its amalgamation of durability, precision, and aesthetic appeal, our Stainless Steel Hexagonal Bar Rod stands out as a prime choice for multiple applications. Whether you're in the heart of industrial manufacturing or crafting an exquisite piece of art, this product ensures strength and finesse in every endeavor.
