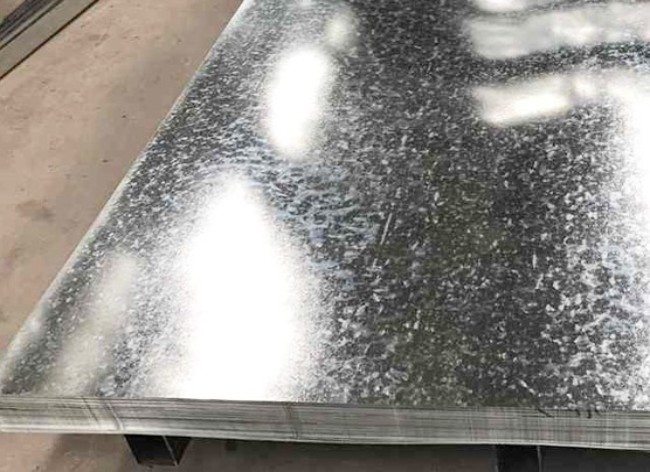

70Mn/1572 Galvanized Plate/Sheet

Contact Us:

+86-13290379998

+86-13290379998

john@sdafjs.com

Click to inquiry
  • Description

Product introduction

Product Name Galvanized steel plate/sheet
Material Dx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD, S350GD, S350GD, S550GD; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440, SGH490,
SGH540, SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570; SQ CR22 (230), SQ CR22 (255), SQ CR40 (275), SQ CR50 (340), SQ
CR80(550), CQ, FS, DDS, EDDS, SQ CR33 (230), SQ CR37 (255), SQCR40 (275), SQ CR50 (340), SQ CR80 (550); or Customer’s Requirement
Thickness 0.12-6.00mm or customer's requirement
Width 600mm-1500mm, according to customer's requirement
Zinc coated 30g-275g/m2
Type of Coating Hot Dipped Galvanized Steel
Surface Treatment Passivation(C), Oiling(O), Lacquer sealing(L), Phosphating(P), Untreated(U)
Surface Structure Normal spangle coating(NS), minimized spangle coating(MS), spangle-free(FS)
Standard JIS 3302 / ASTM A653 /EN10143 AISI , ASTM , DIN , GB , JIS G3302 G3312 G3321 , BS
Technique Hot Rolled / Cold Rolled
Product Application 1. Fence, greenhouse, door pipe,greenhouse
2. Low pressure liquid, water, gas, oil, line pipe
3. For both indoor and outdoor the building construction
4. Widely used in scaffolding construction which is much cheaper and convenient
Delivery Time Usually within 10-45 days after receipt of advance payment
Certificates API ISO9001-2008,SGS.BV

Chemical Composition

bse metal type Grade CHEMICAL COMPOSITION %
C Si Mn P
cold rolled steel sheet DC51D+Z (St01Z, St02Z, St03Z) , DC51D+ZF ≤0.10 - ≤0.50 ≤0.035
DC52D+Z (St04Z), DC52D+ZF ≤0.08 - ≤0.45 ≤0.030
DC53D+Z (St05Z), DC53D+ZF ≤0.08 - ≤0.40 ≤0.030
DC54D+Z (St06Z), DC54D+ZF ≤0.01 ≤0.10 ≤0.30 ≤0.025
DC56D+Z (St07Z), DC56D+ZF ≤0.01 ≤0.10 ≤0.30 ≤0.025
hot rolled steel sheet DD51D+Z (St01ZR, St02ZR) ≤0.10 - ≤0.50 ≤0.035
DD54D+Z (St06ZR) ≤0.01 ≤0.10 ≤0.30 ≤0.025

Mechanical Properties

Usage Grade Yield Strength (MPA) Tensile Strength (MPA) Elongation rate %
Punching galvanized steel DX51D+Z ~ 270-500 >=20
DX52D+Z 140-300 270-420 >=22
DX53D+Z 140-260 270-380 >=26
DX54D+Z 140-220 270-350 >=30
Structure galvanized steel S220GD+Z >=220 >=300 >=18
S250GD+Z >=250 >=330 >=17
S280GD+Z >=280 >=360 >=16
S320GD+Z >=320 >=390 >=15
S350GD+Z >=350 >=420 >=14
S400GD+Z >=400 >=470 ~
S500GD+Z >=500 >=530 ~
S550GD+Z >=550 >=560 ~

Material

Features

What are the Characteristics of the Galvalume steel coil?

Because it is produced through applying Al-Zn coat on both faces by hot dip process. It enjoys both the physical protective feature and durability of Al and the electrochemical protective property of Zn.

   Machinability: It can satisfy the processing requirements of rolling, coiling and others processes alike.

   Thermal resistance: Common HDG steel plate normally works under 230℃, and has its color changed at 250℃, however, Galvalume steel plate can sustain the environment at 315℃ for long time.

   High reflectivity: Reflection ability of heat and light is twice as much as those of hot-dip zinc steel sheet, and its reflectivity is more than 0.70, which is an ideal construction materials of saving energy.

Application


Packaging

Quality Test

Packaging & Transportation

Packing: seaworthy wooden pallets, water proof paper,pvc film,interleaving paper, in 20' or 40' container or as per customers' requirements.


  • 20ft GP:5898mm(Length)x 2352mm(Width)x2393mm(High)

  • 40ft GP:12032mm(Length)x 2352mm(Width)x2393mm(High)

  • 40ft HC:12032mm(Lengh)x 2352mm(Width)x2698mm(High)


FAQ

  Can you send samples?

  Of course, we can send samples to all parts of the world, our samples are free, but customers need to bear the courier costs.

  What product information do I need to provide?

  You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.

  What are the shipping ports?

  Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you can choose other ports according to your needs.

  About product prices?

  Prices vary from period to period due to cyclical changes in the price of raw materials.

  What are the certifications for your products?

  We have ISO 9001, SGS, EWC and other certifications.

  How long does your delivery time take?

  In general, our delivery time is within 7-15 days, and may be delayed if the demand is extremely large or special circumstances occur.

  Can I go to your factory to visit?

  Of course, we welcome customers from all over the world to visit our factory. However, some of the plants are not open to the public.

  Does the product have quality inspection before loading?

  Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.

  How to pack the products?

  The inner layer has a waterproof paper outer layer with iron packaging and is fixed with a fumigation wooden pallet. It can effectively protect products from corrosion during ocean transportation.

Company information

Shandong AoFeng metal material Co., ltd distribution of wholesale stainless steel plate, stainless steel pipe, stainless steel coil, stainless steel bar, stainless steel products best-selling consumer market, enjoys a high status among consumers, the company with several retailers and agents established a long-term, stable relations of cooperation.
