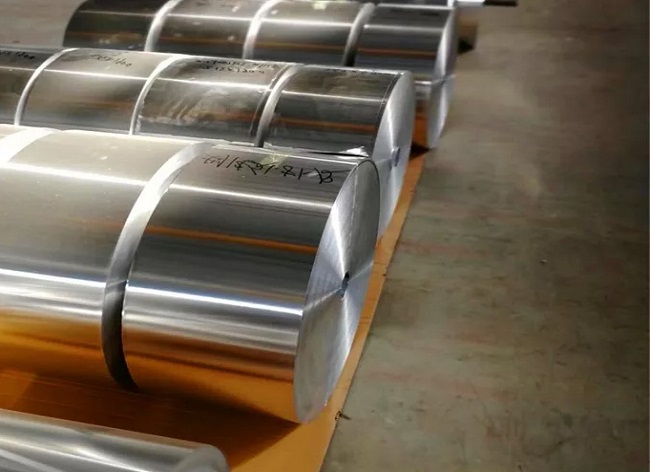

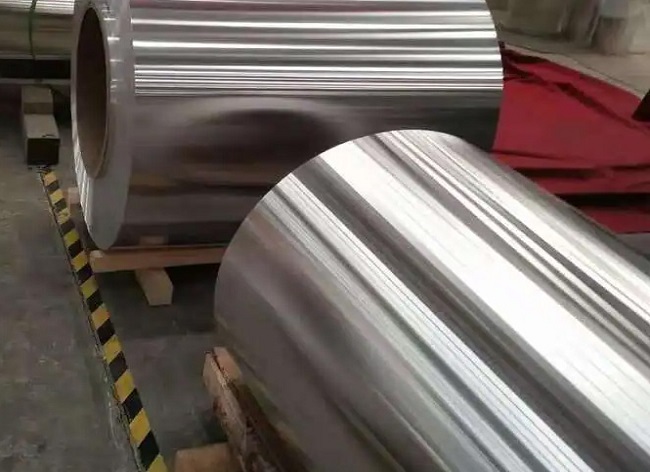

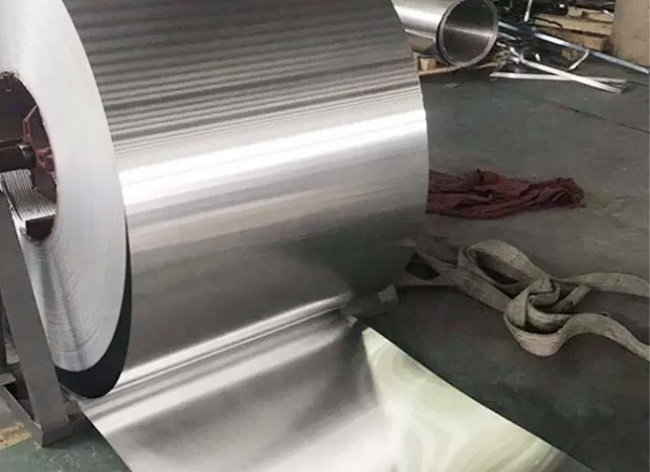

A199.5/1050 Aluminum Coil

Contact Us:

+86-13290379998

+86-13290379998

john@sdafjs.com

Click to inquiry
  • Description

Product introduction

Product Name Aluminium coil(sheet)
Material 1050,1060,3003, 3A21,5052.5005.5083.5A05,6061
Technical Standard JIS G3141,DIN1623,EN10130
Sheet 0.15 mm- 2.0mm
Normal sheet 2.0mm-6.0mm
Medium plate 6.0 mmt-25.0mm
Plate 25mm-200mm
Super thick plate more than 200mm
Quality Approved by SGS,ISO
Width 914 mm, 1000, 1200, 1220mm or as customer's requirement
Length 2000-30000mm
Surface Finish flat, stucco embossed, corrugated, smooth or orange peel embossed
Facing compound with kraftpaper or Polysurlyn or Polykraft
Package Water proof paper is inner packing,galvanized steel or coated steel sheet is outer packing , side guard plate,then wrapped by
seven steel belt.or according to customer's requirement
Payment terms T/T, L/C at sight,West Union,D/P,D/A,Paypal
Delivery time 7-15 Days

Chemical Composition

Alloy %Si %Mg %Mn %Cu %Fe %Cr %Zn %Ti %Others %Al
EN AW-1050 A 0.25Max 0.05Max 0.05Max 0.05Max 0.40Max 0.07Max 0.05Max 99.5 Min
EN AW-1070 A 0.20Max 0.03Max 0.03Max 0.03Max 0.25Max 0.07Max 0.03Max 99.7 Min
EN AW-1100 Si+Fe 0.95 Max 0.05 Max 0.05 – 0.20 0.10 Max 0.05 Max 99.0 Min
EN AW-2011 0.40 Max 5.00 – 6.00 0.70 Max 0.30 Max Bi : 0.20 – 0.60Pb : 0.20 – 0.60 Remainder
EN AW-2014 0.50 – 1.20 0.20 – 0.80 0.40 – 1.20 3.90 – 5.00 0.70 Max 0.10 Max 0.25 Max 0.15 Max Remainder
EN AW-2024 0.50 Max 1.20 -1.80 0.30 – 0.90 3.80 – 4.90 0.50 Max 0.10 Max 0.25 Max 0.15 Max 0.15 Max Remainder
EN AW-3003 0.60 Max 1.00 – 1.50 0.05 – 0.20 0.70 Max 0.10 Max 0.15 Max Remainder
EN AW-3103 0.50 Max 0.30 Max 0.90 – 1.50 0.10 Max 0.70 Max 0.10 Max 0.20 Max 0.10 Max Remainder
EN AW-6101A 0.30 – 0.7 0.40 – 0.90 0.03 Max 0.05 Max 0.40 Max 0.10 Max Remainder
EN AW-6005 0.60 – 0.90 0.40 – 0.60 0.10 Max 0.10 Max 0.35 Max 0.10 Max 0.10 Max 0.10 Max Remainder
EN AW-6351 0.70 – 1.30 0.40 – 0.80 0.40 – 0.80 0.10 Max 0.50 Max 0.20 Max 0.20 Max 0.15 Max Remainder
EN AW-6060 0.30 – 0.60 0.35 – 0.60 0.10 Max 0.10 Max 0.10 – 0.30 0.05 Max 0.15 Max 0.10 Max Remainder
EN AW-6061 0.40 – 0.80 0.80 – 1.20 0.15 Max 0.15 – 0.40 0.70 Max 0.04 – 0.35 0.25 Max 0.15 Max Remainder
EN AW-6063 0.20 – 0.60 0.45 – 0.90 0.10 Max 0.10 Max 0.35 Max 0.10 Max 0.10 Max 0.10 Max Remainder
EN AW-6082 0.70 – 1.30 0.60 -1.20 0.40 – 1.00 0.10 Max 0.50 Max 0.25 Max 0.20 Max 0.10 Max Remainder

Mechanical Properties

Alloy Temper UTS (Mpa) Yield Strength (Mpa) Elongation (%)

Minimum Maximum Minimum Maximum A 50mm (Minimum)
EN AW-1050 A F 60 20 23
O 60 95 20 23
EN AW-1070 A F 60 20 23
EN AW-1100 O 75 110 25
EN AW-2011 T4 275 125 12
T6 310 230 6
EN AW-2014 O 250 135 10
T4 370 230 11
T6 415 370 5
EN AW-2024 O 250 150 10
T3,T3510,T3511 395 290 6
T8,T8510,T8511 455 380 4
EN AW-3003 F 95 35 20
O 95 135 35 20
EN AW-3103 F 95 35 20
O 95 135 35 20
EN AW-6101A T6 200 170 8
EN AW-6005 T4 180 90 13
T6 270 225 6
EN AW-6351 O 160 110 12
T4 205 110 12
T6 290 250 6
EN AW-6060 T4 120 60 14 12
T5 160 120 6
T6 190 150 6
T64 180 120 10
T66 215 160 6
EN AW-6061 O 150 110 14
T4 180 110 13
T6 260 240 6
EN AW-6063 O 130 16
T4 130 65 12
T5 175 130 6
T6 215 170 6
T66 245 200 6
EN AW-6082 O 160 110 12
T4 205 110 12
T5 270 230 6
T6 290 250 6

PE Coating

High molecular polymer as monomer and addition of alkyd,is an UV-resistant coating.It can be classified matt and glossy according to coating gloss.The compact molecule structure,makes paint surface luster and smooth ,which assure good printing on the panel surface.With an warranty of 8-10 years for weather resistance,it is specially applied for internal decoration and sign board.

PVDF Coating

PVDF coating mainly refers to a vinylidene fluoride homopolymer or a copolymer of vinylidene fluoride and other small amount of fluorine-containing vinyl monomer.The chemical structure is stable and firm,and the physical properties of the fluorocarbon coating make the PVDF coated aluminum coil better wear resistance,impact resistance, fading resistance, and UV resistance.

Product Series

  • 1000 Series

    Industrial Pure Aluminum(1050,1060 ,1070, 1100)

  • 3000 Series

    Aluminum-manganese alloys(3A21, 3003, 3103, 3004, 3005, 3105)

  • 5000 Series

    Al-Mg alloys(5052, 5083, 5754, 5005, 5086,5182)

  • 6000 Series

    Aluminum Magnesium Silicon Alloys(6063, 6061, 6060, 6351, 6070, 6181, 6082, 6A02)

  • 7000 Series

    Aluminum, Zinc, Magnesium and Copper Alloys(7075, 7A04, 7A09, 7A52, 7A05)

Features

   Features of the 1 series

It belongs to a series containing the most aluminum.Contains more than 99.00% aluminum, good electrical conductivity, good corrosion resistance, good welding performance, low strength.Used in conventional industry.

   Features of the 3 series

It is mainly composed of manganese.The content is between 1.0% and 1.5%, used for industries and products with high requirements for rust prevention.Good corrosion resistance, good weldability and good plasticity.

   Features of the 5 series

It belongs to the series of commonly used alloy aluminum plate,the main element is magnesium.The main characteristics are low density,high tensile strength,high elongation,good fatigue strength,but can not be strengthened by heat treatment. It is also widely used in conventional industry.

   Features of the 6 series

Contains mainly magnesium and silicon,suitable for corrosion resistance,oxidation demanding applications.



Quality Control

FAQ

  Can I have a sample order for stainless steel sheet plate products?

  Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

  What about the lead time?

  Sample needs 3-5 days;

   Do you have any MOQ limit for stainless steel sheet plate products order?

  Low MOQ, 1pcs for sample checking is available

  How do you ship the goods and how long does it take to arrive?

  We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional. For mass products, ship freight is prefered

  Is it OK to print my logo on products?

  Yes.

  How to ensure the quality?

 Mill Test Certificate is supplied with shipment. If needed, a Third Party Inspection is acceptable or SGS

Logistics

Company information

Shandong AoFeng metal material Co., ltd distribution of wholesale stainless steel plate, stainless steel pipe, stainless steel coil, stainless steel bar, stainless steel products best-selling consumer market, enjoys a high status among consumers, the company with several retailers and agents established a long-term, stable relations of cooperation.
